ASEMI三極管8050/8550對管
SOT-23封裝尺寸參數
8050
描述/Descriptions
SOT-23塑封封裝
NPN半導體三極管
特征/Features
與8550互補
Complementary pair with 8550M.
用途/Applications
用于功率放大電路。
Power amplifier applications.
集電極至基極擊穿電壓
VCBO IC = 0.1mA IE = 0 40 V
集電極到發射極的擊穿電壓
VCEO IC = 2.0mA IB = 0 25 V
發射極至基極擊穿電壓
VEBO IC = 0.1mA IC = 0 6.0 V
集電極截止電流
ICBO VCB = 35V IE = 0 0.1μA
發射極截止電流
IEBO VEB = 6.0V IC = 0 0.1μA

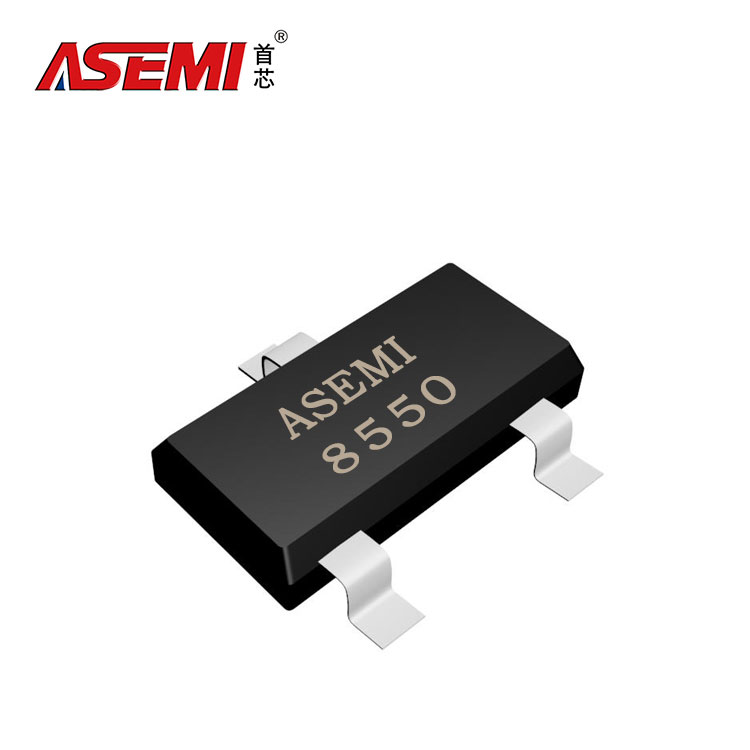

8550
描述/Descriptions
SOT-23塑封封裝
PNP半導體三極管
特征/Features
與8050互補
Complementary pair with 8550M.
用途/Applications用于功率放大電路
Power amplifier applications.
集電極-發射極飽和電壓
VCE(sat)IC = -800mA IB = -80mA -0.28 -0.5 V
基極-發射極飽和電壓
VBE(satIC = -800mA IB = -80mA -0.98 -1.2 V
基極-發射極電壓
VBE VCE = -1.0V IC = -10mA -0.66 -1.0 V
過渡頻率
fT VCE = -10V IC = -50mA 100200 MHz
